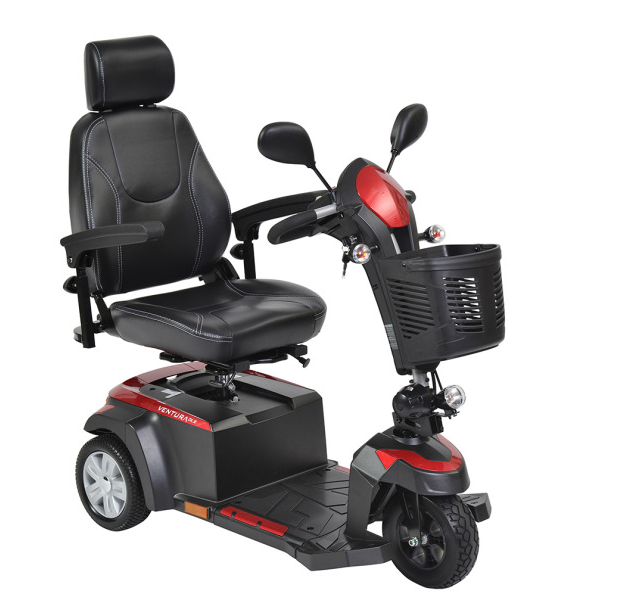

Ventura 3 DLX Scooter, 3-Wheel, 20 Captains Seat

Product #: 2VENTURA320CSDM

Details

Easily disassembles for transport
400 lbs. Weight Capacity
Includes interchangeable color panels in Red and Blue (Figure A)
33 AH batteries for extended range
Floorboard with 23" of foot space
Ergonomic throttle control
Height-adjustable swivel seat features fold-down backrest and adjustable padded armrests
Seat position can be adjusted forward or backward
Rear suspension and Anti-tip wheels
Programmable controller
Seat back reclines and features adjustable headrest
Available with 18" or 20" width Captain’s Seat
Flat-free, non-marking tires
Large, plastic carry basket
Easy-to-adjust Delta tiller
Headlight, Turn signals/hazard lights and Rearview mirrors
Easy free wheel operation

Base Weight	88 lbs.
Batteries (pair)	12V x 33AH
Battery Weight (pair)	46 lbs.
Brakes	Electromagnetic
Charger	4A Offboard
Climbing Angle	7.5°
Dimensions	48” (L) x 25” (W) x 45” (H)
Front Wheels	10” x 3”
Ground Clearance	2.5”
HCPCS	N/A
Heaviest Piece Weight	60 lbs.
Maximum Range	16 miles
Motor	24V x 350W x 5100 rpm
Rear Wheels	10” x 3”
Seat Dimensions	18” (D) x 20” (W)
Seat Type	Captain - Reclining High
Seat Weight	40 lbs.
Top Speed	6 mph
Total Weight (excl. hand control)	174 lbs.
Turning Radius	54"
Warranty on Batteries	12 Months
Weight Capacity	400 lbs
