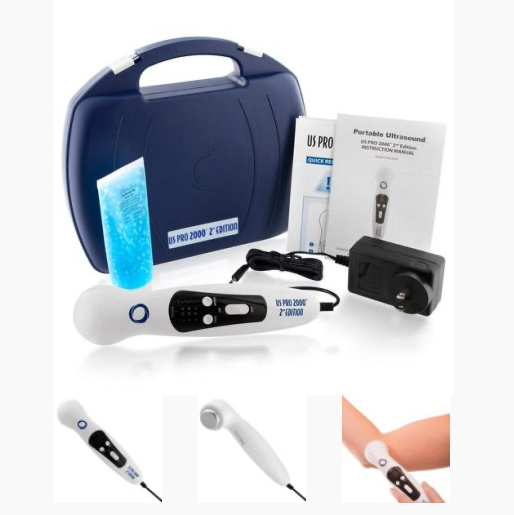

US Pro 2000 2nd Edition Portable Ultrasound Therapy Device

Features

• Operates in continuous mode (100% Duty Cycle).
• Head warming feature pre-heats the sound head applicator for increased patient comfort
• Watertight for use in underwater therapy (Ultrasound head only – IPX7)
• 3 selectable output power intensities
• 3 Timer Settings (5, 10, or 15 minutes)
• Small, ergonomic design that is easy to hold and portable
• 1 Year Manufacturer Warranty
• Doctor Recommend & Patient Trusted
• Comes complete with everything you need to start treatment right away:
  • Ultrasound Device
  • 2oz Ultrasound Gel
  • AC/DC Adapter
  • Hard Carrying Case
  • Quick Start Guide
  • Instruction Manual

Product Specifications:

• Ultrasound Modulation/Acoustic Frequency: 1.0 MHz ±10%
• Temporal Maximum Output Power: 6.4W ± 20% (Modulation duty cycle at 100%)
• Output Power:
  • (L) 0.32W ± 20%
  • (M) 3.20W ± 20%
  • (H) 6.40W ± 20%
• Pulse Repetition Rate: 100Hz ± 10%
• Modulation Duty Cycle (Duty Factor): (L) 5%, (M) 50%, (H) 100%
• Effective Radiating Area (ERA): 4.0 cm2 ± 20%
• Beam Non-uniformity Ratio (BNR): 5.0 max
• Max. Effective Intensity: 1.6 W/cm2 ± 20% (Modulation duty cycle at 100%)
• Effective Intensity:
  • (L) 0.08 W/cm2 ± 20%
  • (M) 0.80 W/cm2 ± 20%
  • (H) 1.60 W/cm2 ± 20%
• Treatment Time: 5, 10, or 15 minutes
• Preheat Time: 3-5 minutes
• Wave Form: Pulsed or Continuous
• Dimensions: 7.95″ L x 1.93″ W x 2.76″ H (202 x 49 x 70mm)
• Weight: 0.43 lbs (193g) (without adapter)
• Material of Applicator: Aluminum
• Beam Type: Collimated

Ultrasound Programs:

• Low (L)
  • Duty Factor: 5%
  • Output Power: 0.08 W/cm2 ± 20%
• Medium (M)
  • Duty Factor: 50%
  • Output Power: 0.80 W/cm2 ± 20%
• High (H)
  • Duty Factor: 100%
  • Output Power: 1.60 W/cm2 ± 20%
