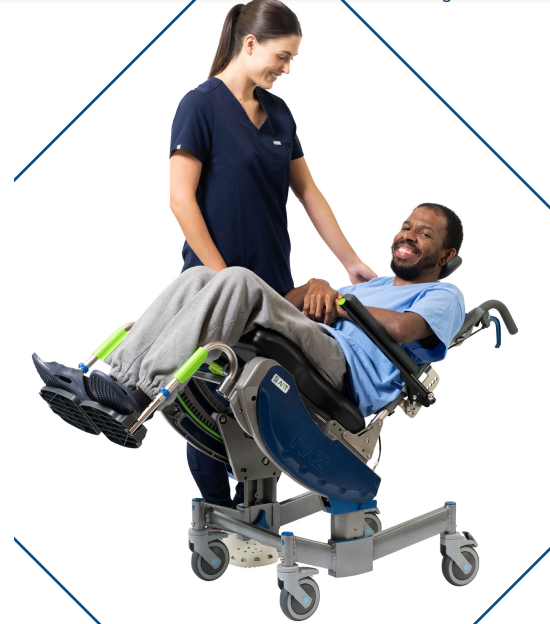

The Raz-ART (Attendant Rotational Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes a patented, dual-arc, orbital tilt system that allows for the smallest footprint and lowest tilt effort of any chair on the market. Unique, aluminum frame design provides two ranges of tool-less height adjustment (20”-23” and 24”-27”). Patent-pending tilt-locking system of the Raz-ART eliminates cable “looping,” which is prevalent on other designs
The Raz-ART mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, aluminum frame fits over most toilets and is designed for easy side and front access by the user or attendant.
Features
- Flip-up arm supports with optional locks
- Built-in tilt angle indicator
- Compatible with all standardwidth Raz seats, which include the exclusive IPAS
- Dual-locking (swivel and roll) 5” (125 mm) casters
- Adjustable back angle
- Backrest with 3” (7.5 cm) fore/aft adjustment to vary seat depth
- Lightweight, invertible, aluminum frame: Provides two tool-less height ranges totaling 7" (18 cm)
- Patented Tilt Geometry: • Dual arc, orbital tilt, minimizes center-of-mass movement throughout range •Extremely low tilt effort • 40° tilt range
- Small Footprint: Provides unparalled manoeuvrability Patent-Pending Tilt Lock: Eliminates cable looping
Specifications
- WEIGHT CAPACITY 350 lbs (160 kg)
- OVERALL WIDTH 22.5” (57 cm)
- OVERALL LENGTH – with head support and standard foot supports in middle position Upright: 35” (89 cm) / Tilted to 40°: 50.5” (128 cm) SEAT WIDTH 18" (46 cm) S
- SEAT DEPTH – front of back post to front of seat 16” – 18” (40.5 – 46 cm) or 19” – 21” (48 – 53 cm)1
- SEAT-TO-FLOOR HEIGHT – 1” (2.5 cm) increments – above standard molded seat Lower Range: 20” – 23” (51 – 58.5 cm) Higher Range: 24” – 27” (61 – 68.5 cm)
- CLEARANCE HEIGHT UNDER SEAT – 1” (2.5 cm) increments – with pan brackets Lower Range: 15" – 18” (38 – 46 cm) Higher Range: 19" – 22” (48 – 56 cm) – without pan brackets Lower Range: 15.5” – 18.5” (41 – 49 cm) Higher Range: 19.5” – 22.5” (51 – 59 cm)
- ARMREST HEIGHT – above standard molded seat – 18"H Fixed Back 9” (23 cm) – 15"H Adjusta-Back 5.5” – 8.5” (14 – 21.5 cm) in 0.5” (1.25 cm) increments – 17"H Adjusta-Back 6.5” – 9.5” (16.5 – 24 cm) in 0.5” (1.25 cm) increments – 20"H Adjusta-Back 7.5" – 10.5" (19 – 27 cm) in 0.5” (1.25 cm) increments – 24"H Adjusta-Back 8.5" – 11.5" (21.5 – 29 cm) in 0.5” (1.25 cm) increments
- PRODUCT WEIGHT (with foot supports) 69 lbs (31 kg)
- FRAME MATERIAL – base frame and seat frame FRAME MATERIAL – back frame and footrests
- HARDWARE MATERIAL Powder-Coated Aluminum2 Stainless Steel2 Stainless Steel2 1 Ischial Pelvic Alignment System (IPAS) allows for the following seat adjustments: 2” (5 cm) of fore/aft, 1” (2.5cm) lateral, or 4.5° rotational
Molded Seat
- contoured for pressure reduction and pelvic stability
- soft integral-skin foam for comfort and durability
- available with open or bridged front
Adjustable Footrests
- removable for transfers and cleaning
- swing in and out easily
- flip-up footplate
- adjust for leg length without tools
Ischial Pelvic Alignment System
- provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
- allows centering of the aperture (opening) around the users’ ITs
- seat locks in place for transfers
- removes easily for cleaning
Fixed Back
- molded, flexible vinyl upholstery – suitable for infection control environments
- includes flip-up, angle-adjustable arms
- available in 17” and 20” back heights
Headrest (small, standard)
- headrest size is approximately 10” W x 4” H
- integral skin foam headrest is easy to clean
- headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
- headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
- headrest angle can be adjusted for comfort
- headrest – small and mounting fixture are included with Raz-AT
Commode Pan
- Injection-molded pan is designed for function
- Includes a lid for splash and odor control
- Wide handle angled at 45 degrees provides better ergonomics
- Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
- Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
- Fits in a standard autoclave and Arjo Tornado Washer
