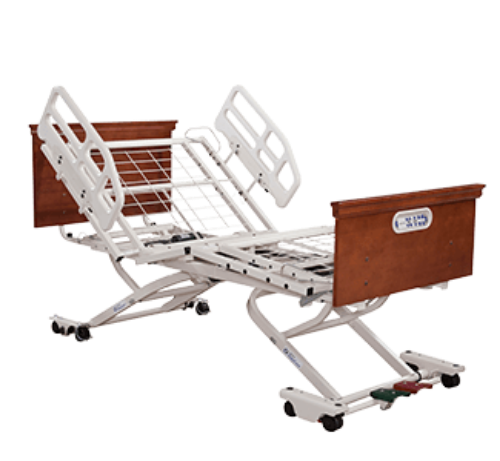

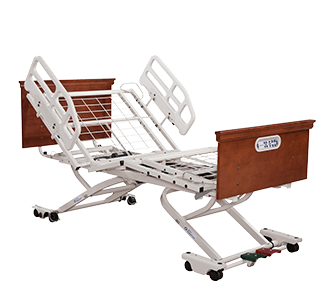

EasyCare Long-Term Bed Configuration

• Intuitive two-pedal locking system is centrally positioned at the foot end of the bed and easily visible due to color-coded status indicators
• Integrated Width Extension provides a sleep surface that expands and retracts from 35 in, 39 in and 42 in and quickly adjusts to move through doorways, while compliant to HBSW entrapment guidelines
• Uniquely-Joerns AdvanceCare positioning includes 30*/45* comfort pauses plus programmable AutoTransfer Height for personalized care and staff efficiency better enabling care for complex patients
• Connexio-ready for connected care enables improved efficiency and delivery of care by empowering operators and clinicians with real time visibility of assets, staff and residents
• Foot end mattress side stops included
• Pair of half rails included

Specifications

• Bed Length 80 in standard, 84 in, 88 in with length extension
• Bed Width 35 in., 39 in. or 42 in. with Integrated Width or CareWide Accessory
• Safe Working Load 600 lbs
• Product Weight Roll-in-Low 220 lbs
• Product Weight Roll-at-any-Height 279 lbs
• Sleep Surface Travel Range 7 in to 30 in
• Underbed Clearance 23 ¾ in
• Max. Back Angle 65 degrees to horizontal
• Max. Knee Angle 35 degrees to horizontal
• Safety Standards: UL60601-1, CAN/CSA C22.2 NO. 601.1, IEC 60601-2-38, CAN/CSA C22.2 NO. 601.2.38
