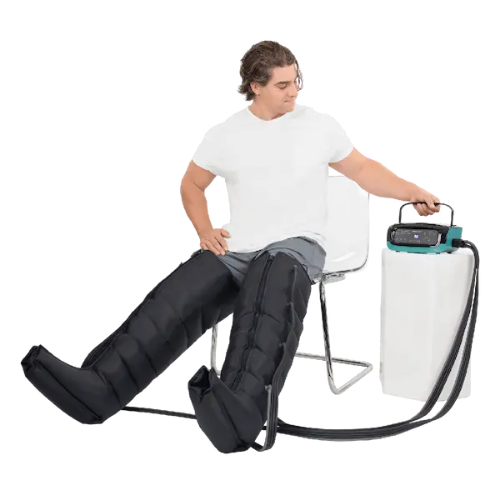

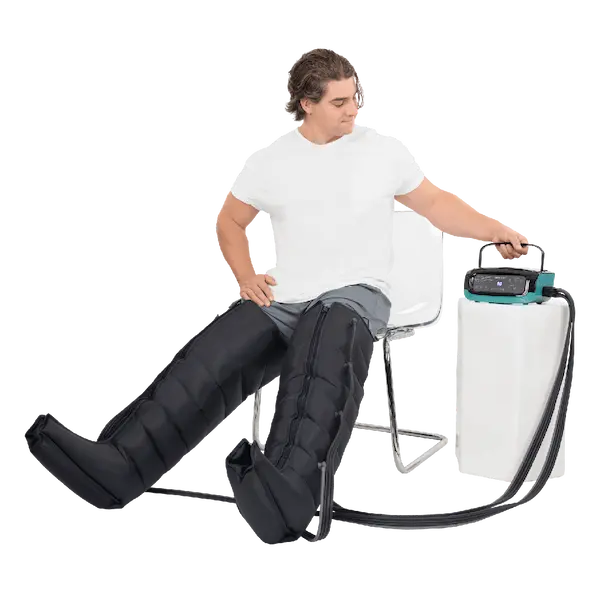

Double Leg Sequential Compression System

The Coretech RHB3003 Lymphedema Pump is a pneumatic compression therapy device specifically designed to address lymphedema and related vascular conditions. This 510K-cleared medical device utilizes sequential compression technology to promote lymphatic drainage and improve circulation in patients suffering from lymphatic impairment. By delivering precise, graduated pressure patterns, the system helps redirect excess lymphatic fluid from compromised areas to healthy regions where it can be naturally processed by the body, providing patients with effective symptom relief and improved quality of life.

Size *

Overview
Specifications
Manuals & Documents

8-Chambers Sleeve Design
- 8-Chambers sleeve configuration with 4 air inlets and shared chambers create an optimal segmental air pressure therapy for enhanced lymphatic drainage and superior patient outcomes.
Bilateral and Unilateral Treatment
- Included air adapter enables flexible treatment configurations - treat one leg, both legs simultaneously, or combine leg and arm therapy to address multiple affected areas in a single session.
Patient Safety Lock Function
- Built-in locking mechanism ensures patient safety and preventing therapy interruption, providing uninterrupted treatment sessions for optimal therapeutic results.
Dual Mode Therapy Options
- Choose between Peristatic Mode (Mode A) and Sequential Gradient Mode (Mode B). Each mode produces distinct compression patterns optimized for different patient needs and treatment protocols. Select from 30, 45, and 60-minute treatment times.
Decrease / Increase Pressure
- Adjusts pressure in 5mmHg increments, ranging from 20mmHg to 80mmHg.

GENERAL SPECIFICATIONS

What’s Included:
- 1 RHB3003 Pump
- 2x Leg Sleeves (8 Chambers)
- 2x Sleeves Extenders
- 2x Air Tubes
- 1x Air Adapter
- 1x Allen Key
Color:
- Sleeves: Grey
- Pump: Black top and green bottom

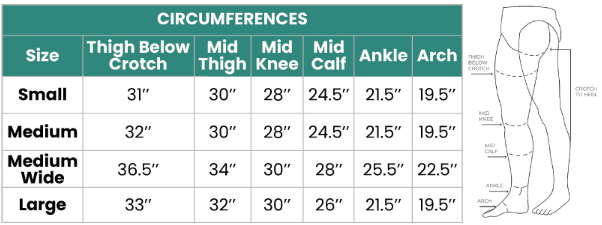

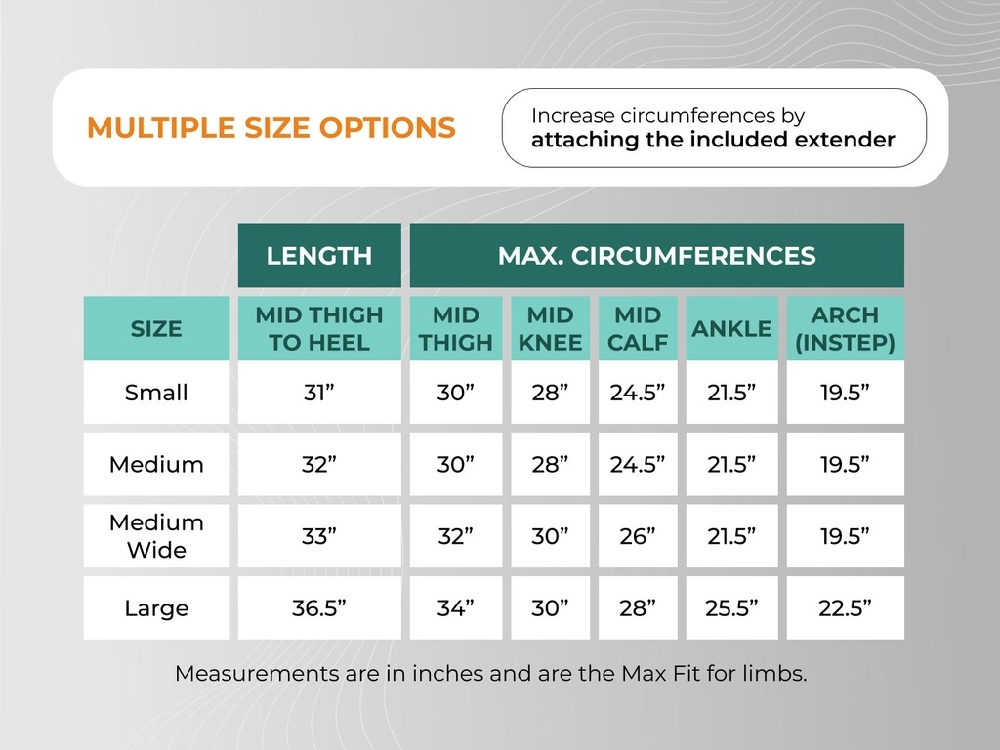

Sizes:
Material(s):
- Cuff: Nylon TPU (70/30)
- Pump: Plastic/Metal (50/50)
- Latex Free
Care Instructions: Spot clean with a damp cloth and dry immediately

PRODUCT SPECIFICATIONS

Mode of Compression: Sequential
Pressure: 20-80 mmHg
Adjustable Cell inflation
Lock Mode: Locks after 20 seconds of inactivity. Press and hold 3 seconds to unlock.
Time Selection:
- 30 min
- 45 min
- 60 min
Power Source: 110V, 60 Hz
Power Cord: 5.5 ft
Cycle Time (2 Modes):
- Mode A: Total time for one cycle is 82s
  - Chamber 1: 16s inflation
  - Chamber 2: 19s inflation
  - Chamber 3: 22s inflation
  - Chamber 4: 25s inflation
    **One chamber inflates at a time while the others deflate.
- Mode B: Total time for one cycle is 97s
  - Chamber 1: 16s inflation
  - Chamber 2: 19s inflation
  - Chamber 3: 22s inflation
  - Chamber 4: 25s inflation
    **Inflates one chamber at a time but they remain inflated, when all chambers are inflated then it starts deflation for 15 seconds.

Quick Guide

8-Chambers Sleeve Design
- 8-Chambers sleeve configuration with 4 air inlets and shared chambers create an optimal segmental air pressure therapy for enhanced lymphatic drainage and superior patient outcomes.
Bilateral and Unilateral Treatment
- Included air adapter enables flexible treatment configurations - treat one leg, both legs simultaneously, or combine leg and arm therapy to address multiple affected areas in a single session.
Patient Safety Lock Function
- Built-in locking mechanism ensures patient safety and preventing therapy interruption, providing uninterrupted treatment sessions for optimal therapeutic results.
Dual Mode Therapy Options
- Choose between Peristatic Mode (Mode A) and Sequential Gradient Mode (Mode B). Each mode produces distinct compression patterns optimized for different patient needs and treatment protocols. Select from 30, 45, and 60-minute treatment times.
Decrease / Increase Pressure
- Adjusts pressure in 5mmHg increments, ranging from 20mmHg to 80mmHg.
